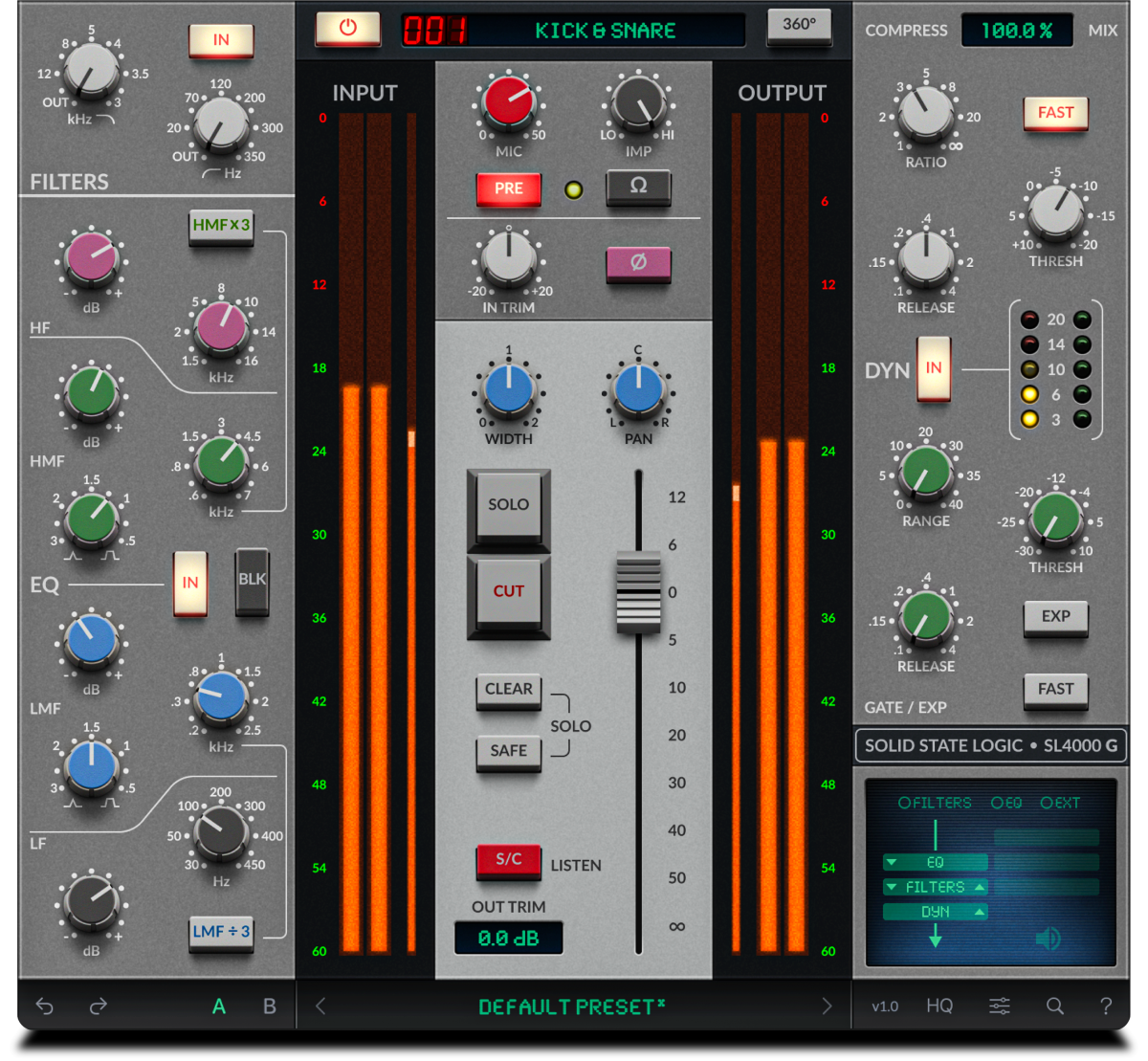

SSL 4K G Channel Strip

Defining Sounds of a Generation

The SSL 4K G plug-in by Solid State Logic is the definitive emulation of the SSL 4000 G channel strip, created by its original designers to authentically recreate the sound of a generation. Offering detailed circuit modelling down to the component level of the revered Pink ‘292’ and Black ‘242’ EQ flavours, alongside the tighter and more refined sounding dynamics section, 4K G lets you tap into the iconic sound behind some of the greatest records of all time.

From Olympic Studios in London to the Record Plant in LA, SSL 4000 G consoles quickly became the new staple in studios worldwide. Its unparalleled sonic character and incredible versatility transcended genres, shaping countless chart-topping hits across pop, rock, and hip-hop. Renowned engineers and producers like Spike Stent, Bob Rock, Dr Dre, and MixedByAli all crafted timeless records on the SL 4000 G.

Meticulously modelled on the original console

Choose between 4000 G-Series Pink 292 and Black 242 EQ flavours.

Expertly modelled G-Series Dynamics, for that signature G-Series punch and control

Creative saturation and tone shaping via the mic amp, impedance control and output VCA modelling

First-class integration with UC1/UF8/UF1 via SSL 360° and the Plug-in Mixer

‘HQ’ mode for intelligent oversampling

The SL 4000 G-series console

Expanding on the SL 4000 E's legacy, the SL 4000 G console emerged in 1987 as the pinnacle of the 4000 series and the final chapter in the 4000 B, E, and G trilogy. While the E Series had established a reputation for bold, aggressive tones, many studio professionals desired a smoother, more refined sound. In response, Solid State Logic introduced the SL 4000 G. This console brought groundbreaking innovation, including redesigned microphone preamps, the Pink Knob ‘292’ EQ, and refined dynamics section, resulting in the console offering a more 'polished’ sound than the previous grit of the E Series.

Analogue modelling

The 4K G plug-in lives up to the legend of the 4000G, imparting all the vibe and rich non-linear analogue character of the console itself. The plug-in is a precise emulation, with detailed component-level modelling and an intricate capture of the original circuit schematics. Highlights include the hyper-realistic emulation of the revered Pink ‘292’ and Black ‘242’ EQ flavours, alongside the tighter and more refined sounding G Series dynamics section. 4K G also incorporates output fader VCA modelling, adding rich layers of harmonic saturation throughout the channel strip.

SSL 4K G Plug-in Overview and Tutorial

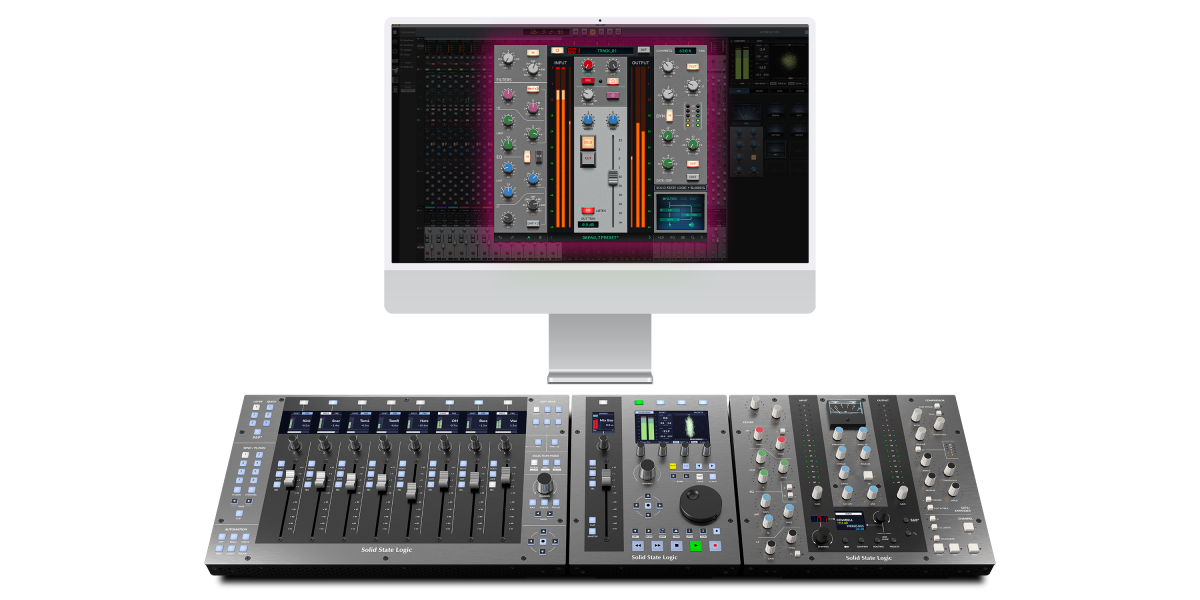

Total integration with UC1, UF1 and UF8

SSL 4K G integrates seamlessly into the 360° Plug-in Mixer ecosystem and is fully controllable from UC1, UF1 and UF8 hardware.

DISCOVER OUR HARDWARE CONTROLLERS

Listen to SSL 4K G plug-in in action

Hear it for yourself – the analogue character of the SL 4000G-series console, in your DAW.

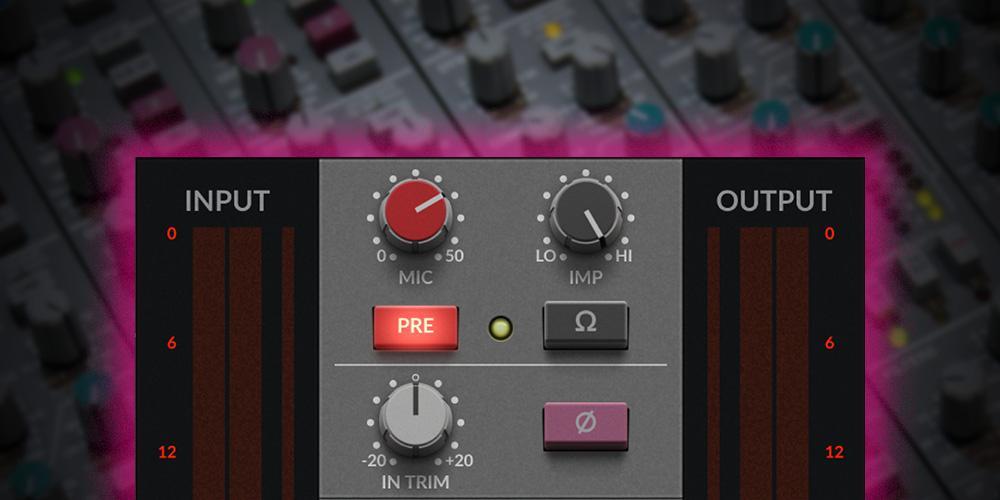

Jensen JT-115K-E Transformer Mic Pre & Impedance Control

Featuring the option to engage the classic 4000 E Series Jensen transformer-modelled mic preamp with its adjustable saturation, 4K G also includes the Variable Mic Input Impedance control, taken from the FX383 G Series outboard unit. Used in conjunction with the Mic Input saturation, the variable impedance control opens up bountiful creative tone shaping options, perfect for lo-fi drum crunching, for example.

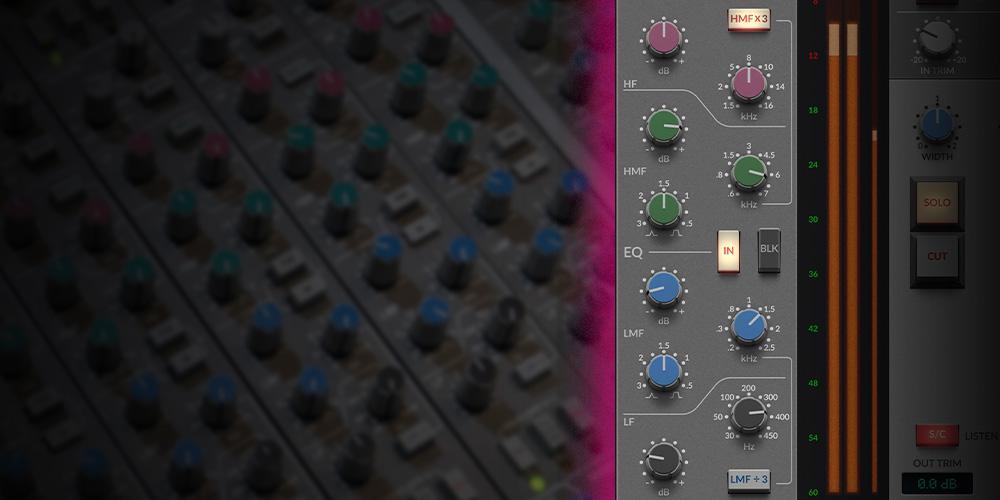

Ultra-smooth and polished EQ character

4K G stands apart from its counterparts thanks to its revised and expanded tone-shaping capabilities. 4K G features the distinctive HMF ×3 and LMF ÷3 selector switches from the iconic ‘292’ EQ. These switches allow the HMF and LMF bands to be shifted to the outer extremes of the frequency spectrum, enabling the creation of unique and expressive EQ curves. This flexibility lets you sculpt bell curves with either wide or narrow Q settings in the low and high frequency regions, in addition to the standard LF and HF shelf controls. The ‘292’ EQ itself employs a variable Q design, meaning that smaller boosts or cuts naturally result in broader curves.

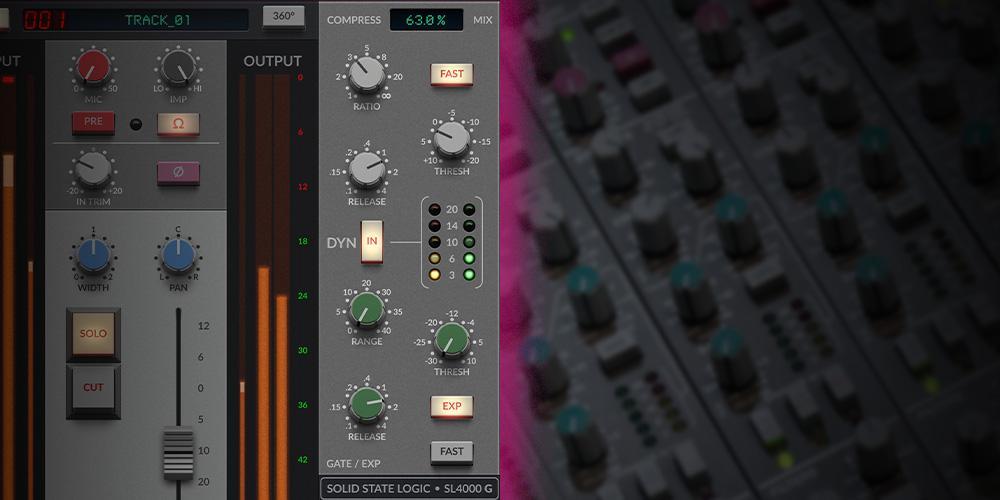

Meticulous modelling of the 4000 G dynamics section

By the time the SL 4000 G console was released, the channel dynamics had undergone many incremental circuit revisions over the 4000-series era. From the aggressive sound of the 4000 B to the much loved ‘pop’ of the 4000 E. The 4000 G provided a refined tightness to its compression characteristic, which proved invaluable in the creation of evermore elaborate and dense mixes. That same precision makes the 4K G dynamics just as impactful in today's complex productions.

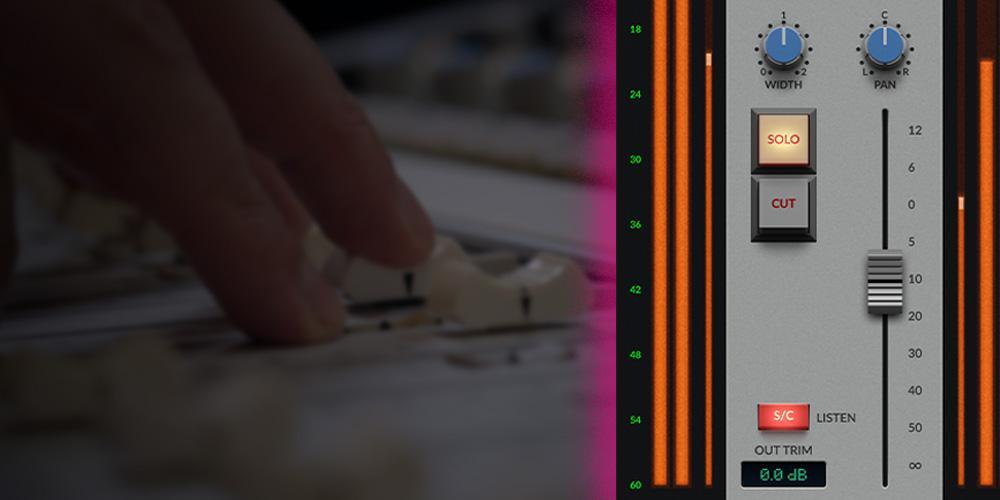

Modelled THAT 2002T 'Blue Can' VCA fader

The 4K G features output fader VCA modeling, delivering added harmonic energy at the final stage of the signal path. It emulates the later THAT 2002T 'Blue Can' VCA, which - while cleaner than earlier VCA designs, still imparts a distinct and characterful dose of harmonic distortion to the signal.

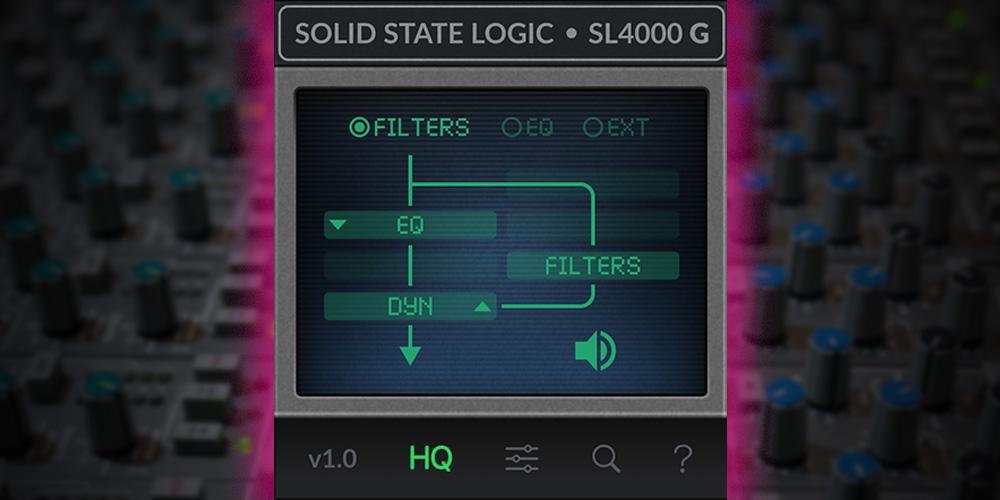

HQ mode for enhanced processing and oversampling

Use the High Quality (HQ) mode to turn on intelligent oversampling under the hood – applying the minimum amount of oversampling necessary for a closer approximation of a continuous analogue signal.

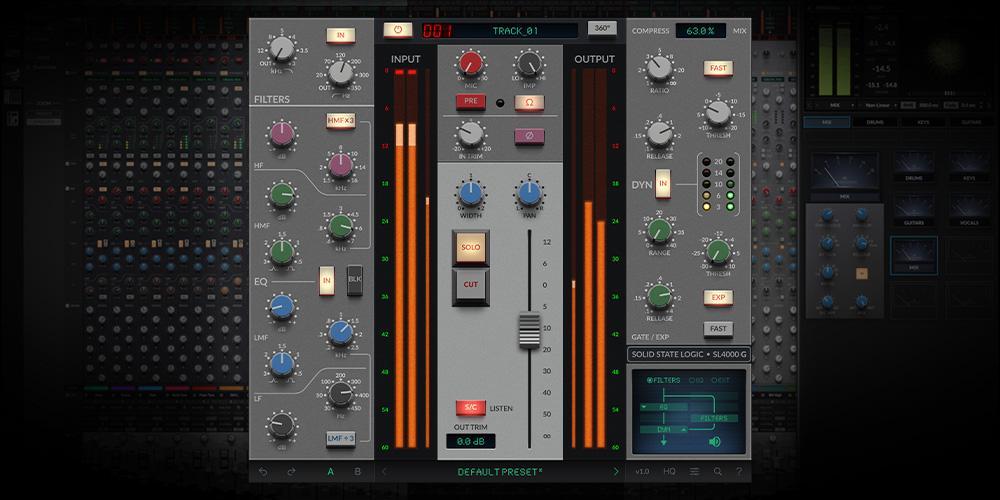

Total control from the SSL 360° Plug-in Mixer

Mix ‘n’ match SSL channel strip plug-ins and control them all from the SSL 360° Plug-in Mixer – your virtual SSL console – including first-class integration with the SSL UC1, UF8 and UF1 controllers for hands-on control.

Seamless integration with UC1, UF1 and UF8

The SSL 4K G integrates seamlessly into the SSL 360° Plug-in Mixer ecosystem and is fully controllable from UC1, UF1 and UF8 hardware controllers.

DISCOVER UC1

DISCOVER UF1

DISCOVER UF8

Choose your SSL flavour

The 4K G, 4K E, 4K B, and Channel Strip 2 plug-ins are the perfect companions for any session. Move from the clean and punchy sound of Channel Strip 2, to the big and rich tone of the 4K E, the warm and vintage flavour of the 4K B, and now the 'polished', tighter sound of the 4K G. With these four plug-ins, you can mix and match them from the SSL 360° Plug-in Mixer to get the legendary SSL sound and workflow used on thousands of hit records!

To benefit from these special prices for 4K G and 4K E shown in the images, you will need to apply a discount code - which can be found in the SSL accounts portal, under the 'Get Additional Software' link of your registered UC1/UF8/UF1 DAW controller.

DISCOVER SSL 360° AND THE PLUG-IN MIXER

Free trial for 14 days

To start a 14-day free trial, simply download and install 4K G plug-in below.

Upon launching your DAW, click the 'Try' button to activate your free trial. If the Activation Experience pop-up does not appear on launch, simply add the plug-in on any insert. You will be asked to log into your iLok account, and the trial authorization period will begin.

Downloads

Use the SSL Download Manager to install and manage your SSL plug-ins. Click on the button below to get started.

DOWNLOAD

For offline installers, please visit this FAQ.

Documents

SSL 4K G Plug-in User Guide

Download

Download -

Before downloading this file please read and consent to the EULA.
General End User License Agreement Please read and make sure you understand this End User Licence Agreement before you download and install any software from this website or use any goods sold to you by us which contain software. Scroll to the bottom of this page to continue. SOLID STATE LOGIC END USER LICENCE AGREEMENT IMPORTANT- PLEASE READ CAREFULLY: THIS END-USER LICENCE AGREEMENT ("EULA") IS A LEGAL AGREEMENT BETWEEN YOU ("YOU") AND Solid State Logic UK Limited T/A SOLID STATE LOGIC OF SPRING HILL ROAD, BEGBROKE, OXFORD OX15 6DS ("SOLID STATE LOGIC") FOR THE SOLID STATE LOGIC SOFTWARE THAT ACCOMPANIES THIS EULA, WHICH INCLUDES COMPUTER SOFTWARE/ FIRMWARE WHICH MAY ALSO INCLUDE ASSOCIATED MEDIA, PRINTED MATERIALS, "ONLINE" OR ELECTRONIC DOCUMENTATION, AND INTERNET-BASED SERVICES AND DOWNLOADED SOFTWARE AND ANY UPDATES ("SOFTWARE"). AN AMENDMENT OR ADDENDUM TO THIS EULA MAY ACCOMPANY THE SOFTWARE. YOU AGREE TO BE BOUND BY THE TERMS OF THIS EULA BY INSTALLING, COPYING, OR OTHERWISE USING THE SOFTWARE. If You do not agree to the following terms, or do not fulfil the requirements set out in this EULA, no Licence is granted to You by this EULA and You may not use, install or download the Software (and any copies of the Software that You do hold must be deleted or destroyed). 1. GRANT OF LICENCE. 1.1 In consideration of your paying any price charged for the Software or product sold by Solid State Logic to You which contained the Software at point of sale (“Product”) and/or your use of any free Software and your compliance with these terms, Solid State Logic grants to You the non-exclusive right to install and/or use the Software as specified in this EULA and in accordance with any documentation that accompanies the Software or Product online or in paper format (and which includes, without limitation, the terms and conditions upon which Solid State Logic sold the Product to You) (“ Documentation ”). 2. THIRD PARTY SOFTWARE AND OPEN SOURCE SOFTWARE. 2.1 Some or all of the Software may consist of third party applications and packages which may be proprietary and / or open source software. You are obliged to comply with any additional licensing terms related to such third party applications. To the extent that this EULA contains any provision(s) which are contradictory to the terms of those third party applications and packages, the terms of those third party Licences shall apply to that Software as opposed to the terms of this EULA and the terms of this EULA shall not apply to them. Unless stated otherwise in the documentation that accompanies the Software or Product, Solid State Logic does not provide any warranty, maintenance, technical or other support for third party applications and all warranties in the Software are disclaimed as set out in clause 10 below. 2.2 A list of the third party software, acknowledgement and Licences for each Product can be found at www.solidstatelogic.com/about/open-source-softwareas may be updated from time to time. 2.3 Certain software libraries and other third party software included with the Software are free software and licensed under the terms of open source Licences. You may obtain a complete source code copy of such free software under the terms of the Licence if applicable, without charge at www.solidstatelogic.com/about/open-source-software. 2.4 To the extent that the Software links to any open source software libraries (“OSS Libraries”) that are provided to You with the Software, nothing in this EULA shall affect Your rights under the Licences on which the owner of intellectual property rights in the relevant OSS Libraries (“Third Party Licensor”) has licensed the OSS Libraries, details of which can be found at www.solidstatelogic.com/about/open-source-software. To the extent that Third Party Licensors have licensed OSS Libraries on the terms of v2.1 or v3 of the Lesser General Public Licence issued by the Free Software Foundation (the “LGPL”), those OSS Libraries are licensed to You on the terms of the relevant LGPL and are referred to, in this clause 2.4 and in clause 6.1.4, as the LGPL Libraries. You may obtain a complete copy of the source code of the LPGL Libraries without charge at www.solidstatelogic.com/about/open-source-software in order that You may modify the LGPL Libraries in accordance with the relevant LGPL, together with certain object code of the Software necessary to enable You to re-link any modified LGPL Library to the Software. 3. EXPORT/IMPORT RESTRICTIONS. 3.1 The Software, including technical data, may be subject to U. S. export control laws, and may be subject to export or import regulations in other countries. You agree to comply with all such regulations, and acknowledge that it is your responsibility to obtain all Licences to export, re-export, or import the Software. In particular, Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 4. INTELLECTUAL PROPERTY RIGHTS. 4.1 Solid State Logic reserves all rights not expressly granted to You in this EULA or third party Licences associated with it. The Software is protected by copyright and other intellectual property laws and treaties. Solid State Logic or its suppliers own or have the right to license the title, copyright, and all other intellectual property rights in the Software. The Software is licensed, not sold, to You by Solid State Logic, and You shall have no rights in or to the Software other than the right to use it in accordance with the terms of this EULA. 5. ADDITIONAL SOFTWARE/SERVICES. 5.1 This EULA and any amendment or addendum to this EULA applies to updates, supplements, or add-on components of the Software that Solid State Logic may provide to You, including in accordance with clauses 2.2 and 2.3, or make available to You after the date You obtain your initial copy of the Software unless a further EULA is provided with these. 6. LICENCEE'S UNDERTAKINGS 6.1 Except as expressly set out in this Licence or as permitted by any local law, you undertake: 6.1.1 not to copy the Software or Documentation except where such copying is incidental to normal use of the Software or where it is necessary for the purpose of backup or operational security; 6.1.2 not to translate, merge, adapt, vary or modify the Software or Documentation, assign the benefit or burden of this Licence in whole or in part, or to allow the Software to become the subject of a charge, lien or encumbrance; 6.1.3 not to make alterations to, or modifications of, the whole or any part of the Software nor permit the Software or any part of it to be combined with, or become incorporated in, any other programs, unless authorised by us in writing; 6.1.4 not to disassemble, decompile, reverse engineer or create derivative works based on the whole, or any part, of the Software nor attempt to do any such things except to the extent that: (i) by virtue of section 296A of the Copyright, Designs and Patents Act 1988, such actions cannot be prohibited because they are essential for the purpose of achieving interoperability of the Software with another software program, and provided that the information obtained by you during such activities: (a) is used only for the purpose of achieving interoperability of the Software with another software program; and (b) is not unnecessarily disclosed or communicated to any third party without our prior written consent; and (c) is not used to create any software which is substantially similar to the Software; and (ii) the Software links to LGPL Libraries and reverse engineering of the Software is essential for debugging any modifications You have made to the LGPL Libraries. 6.1.5 where You are acting in the course of Your trade, business, craft or profession (“Business Customer ”), not to permit the Software to be accessed through an electronic network beyond your normal place of business; 6.1.6 to keep all copies of the Software secure and to maintain accurate and up-to-date records of the number and locations of all copies of the Software; 6.1.7 to supervise and control use of the Software and (where you are a Business Customer) ensure that your employees, representatives and customers use the Software in accordance with the terms of this Licence; and 6.1.8 to include our and our licensors’ copyright notices on all entire and partial copies you make of the Software or any third party software we supply on any medium. 6.2 You must permit us and our representatives, at all reasonable times and on reasonable advance notice, to inspect and have access to any premises at which the Software or the Documentation is being kept or used, to the Products and other relevant computer equipment located there, and to any records kept pursuant to this Licence, for the purpose of ensuring that you are complying with the terms of this Licence. 7. RESALE AND SOFTWARE TRANSFER. 7.1 Software identified as "Not for Resale" or "NFR," may not be sold or otherwise transferred for value, or used for any purpose other than demonstration, test or evaluation. 7.2 Internal: You may transfer the Software to an alternative system. After the transfer, You must completely remove the Software from the former system. 7.3 Transfer to a third party: You may make a one-time permanent transfer of this EULA and the Software to another end user. If you do so (i) You may not retain any copy of the Software, (ii) the transfer must include all of the Software (including all component parts, the media and printed materials, any updates and, if applicable, a Certificate of Authenticity) and be subject to this EULA. The transfer may not be an indirect transfer, such as a consignment. Prior to the transfer, the end user receiving the Software must agree to be bound by this EULA and any amendment or addendum to this EULA. 8. TERMINATION. 8.1 Without prejudice to any other rights, Solid State Logic may terminate this EULA if You fail to comply with any of the terms of this EULA. In such an event, all rights granted to You under this EULA shall cease, You must cease all activities authorised by this EULA and You must destroy all copies of the Software and all of its component parts within your control. 9. LIMITED WARRANTY & YOUR EXCLUSIVE REMEDY. 9.1 Subject to clauses 10.3 and 10.4, Solid State Logic warrants that the Software will perform substantially in accordance with the Solid State Logic materials that accompany the Software for a period of ninety (90) days from the date of receipt. If an implied warranty or condition is created by the laws of your territory that cannot be excluded, You are entitled to rely upon it, but only as to defects discovered during the period of this limited warranty (ninety days). 9.2 SOLID STATE LOGIC'S ENTIRE LIABILITY, AND YOUR EXCLUSIVE REMEDY, UNDER THE LIMITED WARRANTY PROVIDED IN THIS CLAUSE, OR FOR ANY OTHER BREACH OF THIS EULA, OR FOR ANY OTHER LIABILITY RELATING TO THE SOFTWARE, SHALL BE (AT SOLID STATE LOGIC'S OPTION), (I) RETURN OF THE AMOUNT PAID (IF ANY) FOR THE SOFTWARE, OR (II) REPAIR OR REPLACEMENT OF THE SOFTWARE, TO THE EXTENT THAT IT DOES NOT MEET THE LIMITED WARRANTY. 9.3 You will receive the remedy elected by Solid State Logic. You are responsible for any expenses You may incur. The Limited Warranty provided in this clause is void if failure of the Software has resulted from accident, abuse, misapplication, abnormal use, a virus, or combination of the Product or Software with any other product or software. Any replacement Software will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer, and Solid State Logic will use reasonable efforts to provide your remedy within a reasonable time of your compliance with Solid State Logic’s warranty remedy procedures. 9.4 Where You: (i) are acting outside the course of Your trade, business, craft or profession, and are using Products for Your domestic, private, and non-commercial use; and (ii) you have either paid Solid State Logic for the Software or a Product for which you were obliged to download and/or install Software on the Product for its proper functioning (“ Consumer ”) the warranties and remedies in relation to the Software shall be those contained in the terms and conditions upon which Solid State Logic sold the Products to You as a Consumer (“Consumer Terms of Sale”). 10. DISCLAIMERS. 10.1 The Limited Warranty that appears above is the only warranty made to You and is provided in lieu of any other express warranties or similar obligations (if any) created by any advertising, documentation, packaging, or other commu● nications. 10.2 Except for the Limited Warranty and to the maximum extent permitted by applicable law, Solid State Logic and its suppliers provide the Software and support services (if any) "AS IS" and "WITH ALL FAULTS", and hereby disclaim all other warranties and conditions, whether express, implied or statutory, including, but not limited to, any (if any) implied warranties, duties or conditions of merchantability, of fitness for a particular purpose, of reliability or availability, of accuracy or completeness of responses, of results, of workmanlike effort, of lack of viruses, and of lack of negligence, all with regard to the Software, and the provision of or failure to provide support or other services, information, software, and related content through the Software or otherwise arising out of the use of the Software. 10.3 SOLID STATE LOGIC DOES NOT WARRANT THAT THE SOFTWARE IS FREE OF BUGS OR ERRORS, AND THE EXISTENCE OF SUCH WILL NOT RESULT IN SOLID STATE LOGIC (i) BEING IN BREACH OF THIS EULA OR (ii) INCURRING ANY LIABILITY. 10.4 SO FAR AS IS PERMITTED BY LAW, THERE IS NO WARRANTY OR CONDITION OF TITLE, QUIET ENJOYMENT, QUIET POSSESSION, CORRESPONDENCE TO DESCRIPTION OR NON-INFRINGEMENT WITH REGARD TO THE SOFTWARE. Where you are a Consumer and there is any conflict between the terms of this clause 10 and the Consumer Terms of Sale, the Consumer Terms of Sale shall apply. 11. LIMITATION OF LIABILITY. 11.1 To the maximum extent permitted by applicable law, and except as provided in any Solid State Logic guarantee provided with the Software or Product and the Limited Warranty (above), Solid State Logic and its suppliers shall not be liable for any damages whatsoever (including without limitation, damages for loss of data, loss of business profits or business opportunity, business interruption, loss of business information or other direct, indirect, consequential or pecuniary loss) arising out of the use or inability to use the Software, even if Solid State Logic has been advised of the possibility of such damages. 11.2 (WITHOUT PREJUDICE TO CLAUSE 9.2) IN ANY CASE SOLID STATE LOGIC'S ENTIRE LIABILITY UNDER ANY PROVISION OF THIS EULA SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE SOFTWARE. THESE LIMITATIONS DO NOT APPLY TO ANY LIABILITIES THAT CANNOT BE EXCLUDED OR LIMITED BY APPLICABLE LAWS. SUBJECT TO THE FOREGOING, SOLID STATE LOGIC'S LIABILITY FOR INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS SHALL BE LIMITED TO BREACHES OF RIGHTS SUBSISTING IN THE UK. 11.3 Where you are a Consumer and there is any conflict between the terms of this clause 11 and the Consumer Terms of Sale, the terms of the Consumer Terms of Sale shall apply. 12. GENERAL. 12.1 Save where the Software forms part of a Product, this EULA (including any Solid State Logic addendum or amendment to this EULA which is included with the Software and the Licences referenced in clause 2) constitutes the entire agreement between You and Solid State Logic relating to the Software and the support services (if any), and they supersede all prior or contemporaneous oral or written communications, proposals and representations with respect to the Software or any other subject matter covered by this EULA. To the extent the terms of any Solid State Logic policies or programs for support services conflict with the terms of this EULA, the terms of this EULA shall prevail over such conflicting provisions. 12.2 This EULA is binding on You and Solid State Logic and on any respective successors and assigns. 12.3 Solid State Logic may transfer, assign, charge, sub-contract or otherwise dispose of this EULA, or any of its rights or obligations arising under it, at any time. 12.4 If any provision of this EULA is held by a competent authority to be illegal, invalid, void or unenforceable under the laws of any jurisdiction, such term, condition or provision will to that extent be severed from the remaining terms, conditions and provisions which will continue to be valid to the fullest extent permitted by law. 12.5 If Solid State Logic fails, at any time during the term of this EULA to insist upon strict performance of any of your obligations under this EULA, or if it fails to exercise any of the rights or remedies to which it is entitled under this EULA, this shall not constitute a waiver of such rights or remedies and shall not relieve You from compliance with such obligations. A waiver by Solid State Logic of any default shall not constitute a waiver of any subsequent default. No waiver by Solid State Logic of any of these terms and conditions shall be effective unless it is expressly stated to be a waiver and is communicated to you in writing. 12.6 Solid State Logic will not be liable or responsible for any failure to perform, or delay in performance of, any of its obligations under this Licence that are caused by an event outside of its reasonable control 12.7 All notices given by You to Solid State Logic must be given to Solid State Logic UK Limited T/A SOLID STATE LOGIC, SPRING HILL ROAD, BEGBROKE, OXFORD OX51RU. Solid State Logic may give notice to You at your most recent address (be it physical or email) known to Solid State Logic, and/or through a notice posted on Solid State Logic's then website. Notice will be deemed received and properly served 24 hours after an e-mail is sent, 24 hours after posting on Solid State Logic's website, or three days after the date of posting of any letter. 12.8 This Licence shall be governed and construed in accordance with the laws of England and Wales. Subject to Solid State Logic being entitled to enforce the terms of this EULA in any court or jurisdiction that it sees fit, any dispute arising from or related to this EULA shall be subject to the non-exclusive jurisdiction of the courts of England and Wales. Where You use the Software outside of England and Wales, the local law may impose greater restrictions on You that You must comply with. 13. YOUR ACKNOWLEDGMENT: 13.1 YOU ACKNOWLEDGE THAT YOU HAVE READ THIS EULA, UNDERSTAND IT, AND AGREE BY USING THE SOFTWARE TO BE BOUND BY ITS TERMS. Should you have any questions concerning this EULA, please contact: marketing@solidstatelogic.com or Solid State Logic UK Limited. t/a Solid State Logic, Spring Hill Road Begbroke Oxford OX15 6DS t: +44 (0) 1865 842300

ASIO is a trademark and software of Steinberg Media Technologies GmbH

DOWNLOAD

SSL plug-ins can be authorised by machine-based iLok licensing or iLok 2 / iLok 3 USB dongles.

"DBX" and "Jensen" trademarks are the property of their respective owners.
